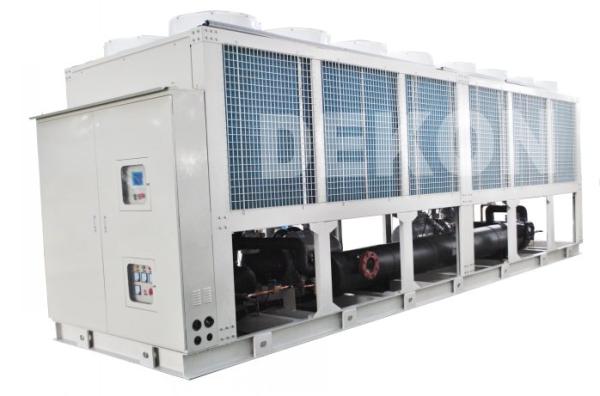

    Air cooled screw chiller 200TR with heat pump optional(CMA200DN)

    Ask Lasest Price
    Brand Name : DEKON
    Model Number : CMA200DN
    Certification : CE
    Price : 75000USD
    Delivery Time : 35-40days
    Payment Terms : TT 30% FOR DEPOSIT, BALANCED BEFORE SHIPMENT
    Supply Ability : 50pcs per month
    • Product Details
    • Company Profile

    Air cooled screw chiller 200TR with heat pump optional(CMA200DN)


    unit styleCMA200DN
    Cooling capacitykW700
    Input power when coolingkW222
    Nominal absorbed current of unitA420
    COPkW/kW3.15
    Power supplyV/P/HZ3P/380V/50HZ
    Max absorbed current of unitA540
    Control typeSIEMENZ PLC
    Refrigerant typeR407C
    Discharge volumekg218
    Refrigerant control typeTHERMAL EXPANSION
    Compressor typesemi-hermetic screw type
    Compressor numberset2
    Compressors power inputkW101×2
    Compressors absorbed currentA178×2
    Capacity stage12.5~100%
    Evaporator typeshell and tube type
    Water temperature IN/ OUT127
    Water Flow user sidem3/h120.4
    Diameter of water pipeDNDN150
    Total water DPkPa68
    Outdoor temperure(design)35
    Unit working temperature range21~43
    Condenser
    Condenser typecopper tube+aluminum fin
    Fan typeaxial type
    Fan number16
    Air flowm3/h20000×16
    Fans power inputkW1.25×16
    Fan absorbed currentA4×16
    Heating recovery
    Heating recovery capacitykW280
    Water temperature of IN/OUT40/45
    Water flowm3/h48.2
    Water DPkPa50
    Diameter of water pipeDN80
    Unit dimensions &Weight
    Heightmm2500
    Lengthmm8160
    Depthmm2232
    Unit weightkg8600
    SAFETY DEVICE & ACCESSORY
    Pressure switch(High, Low); Fusible Plug; Electronic over current relay
    Discharge temp.thermistor; Freeze protetion thermistor; Safety vavle
